SKY 2353

2350 Series

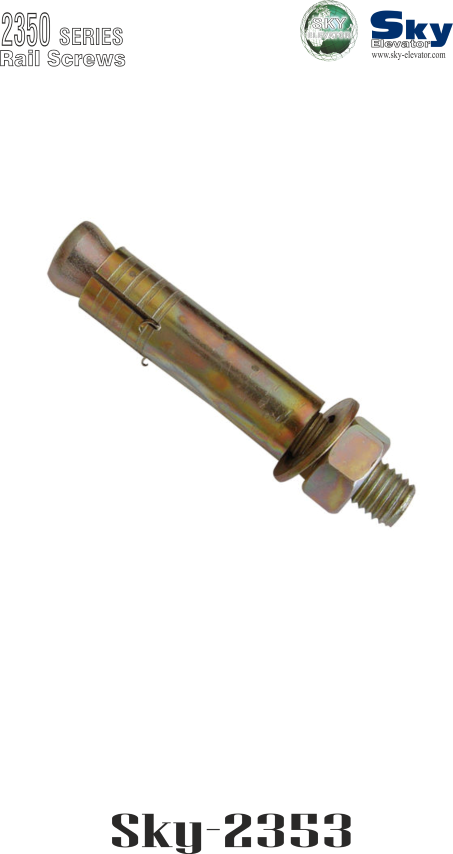

Anchor with Bolt and Pipe
It is preferred in the places with low concrete quality, especially in the assembly of elevator rails. It is an IDGM-type anchor made from ring pipe. It is zinc-coated against corrosion.

METRİK	DÜBEL BOYU mm	DÜBEL ÇAPI Ø	UYG. MALZ. KALINLIĞI cm	DELİK DERİNLİĞİ mm	SIKMA MOMENTİ Nm	EMNİYETLİ ÇEKME YÜKÜ Kg
M6	65	10	8	55	20	625
M8	75	13	12	60	40	1200
M10	85	15	17	70	85	1500
M10	110	15	17	70	90	1600
M12	90	16	12	80	100	2000
M12	110	16	12	80	135	2000
M14	110	22	20	90	200	2500
M16	120	22	20	90	260	2800
M20	140	25	15	110	310	3150
