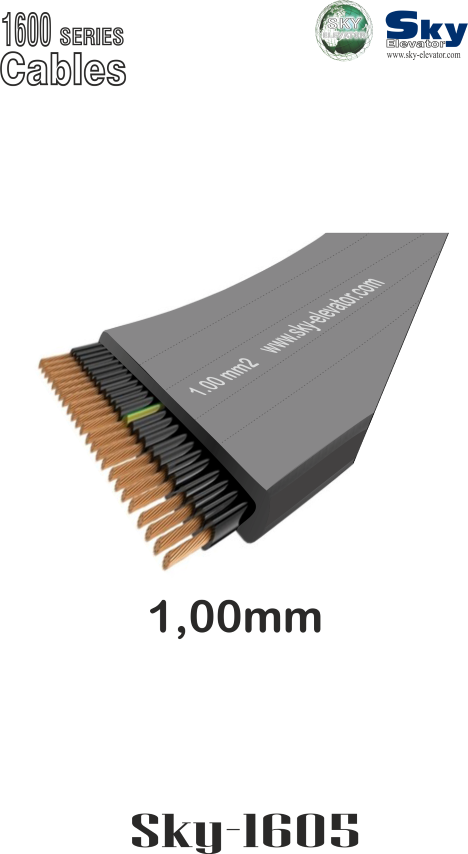

SKY 1605 (1,00 mm)

1600 Series (Elevators)

General Properties
Application	This is used as elevator control and command cable
Conductor	bare copper wires (flixible standerd)
Insulation	PVC
Core Code	Colour Coding black cores with number-printing gn/ye core without number-printing
Core Code
Sheath	PVC , Black or GRAY
Rated voltage	1,00 mm² ; 300/500V
Test voltage	2kv / 15 minutes
Free suspension length	max. 45m
Travelling height	max. 80m
Running speed	max. 4 m / s
Operationg temperature	-15°C ÷ 70°C
Bending radius	min. 10 x thickness of the cables
Standards	acc. To EN 50214
